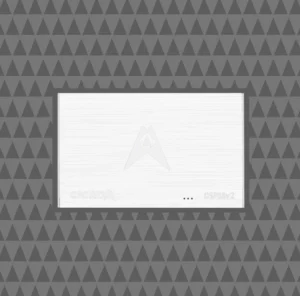

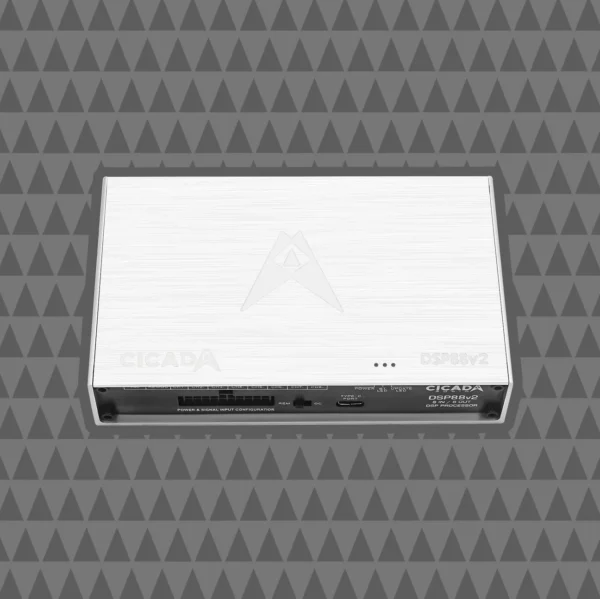

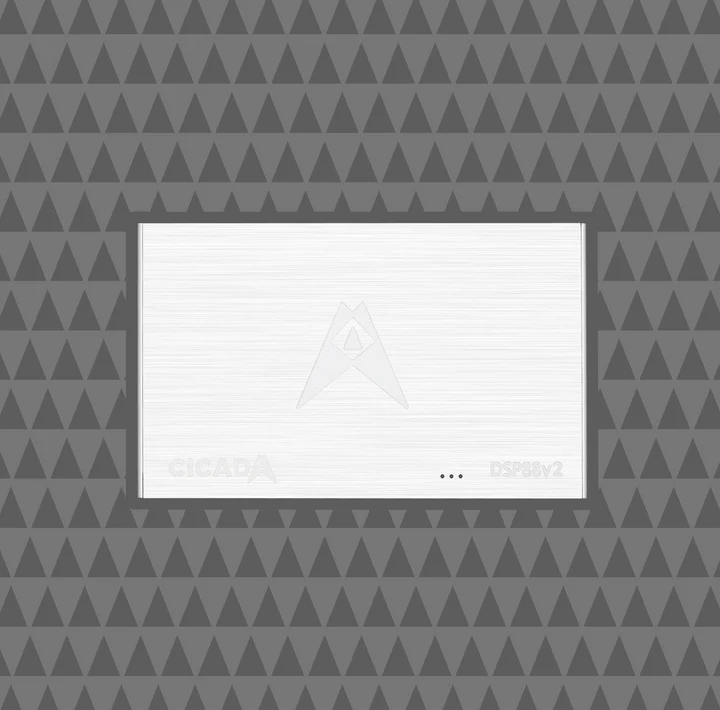

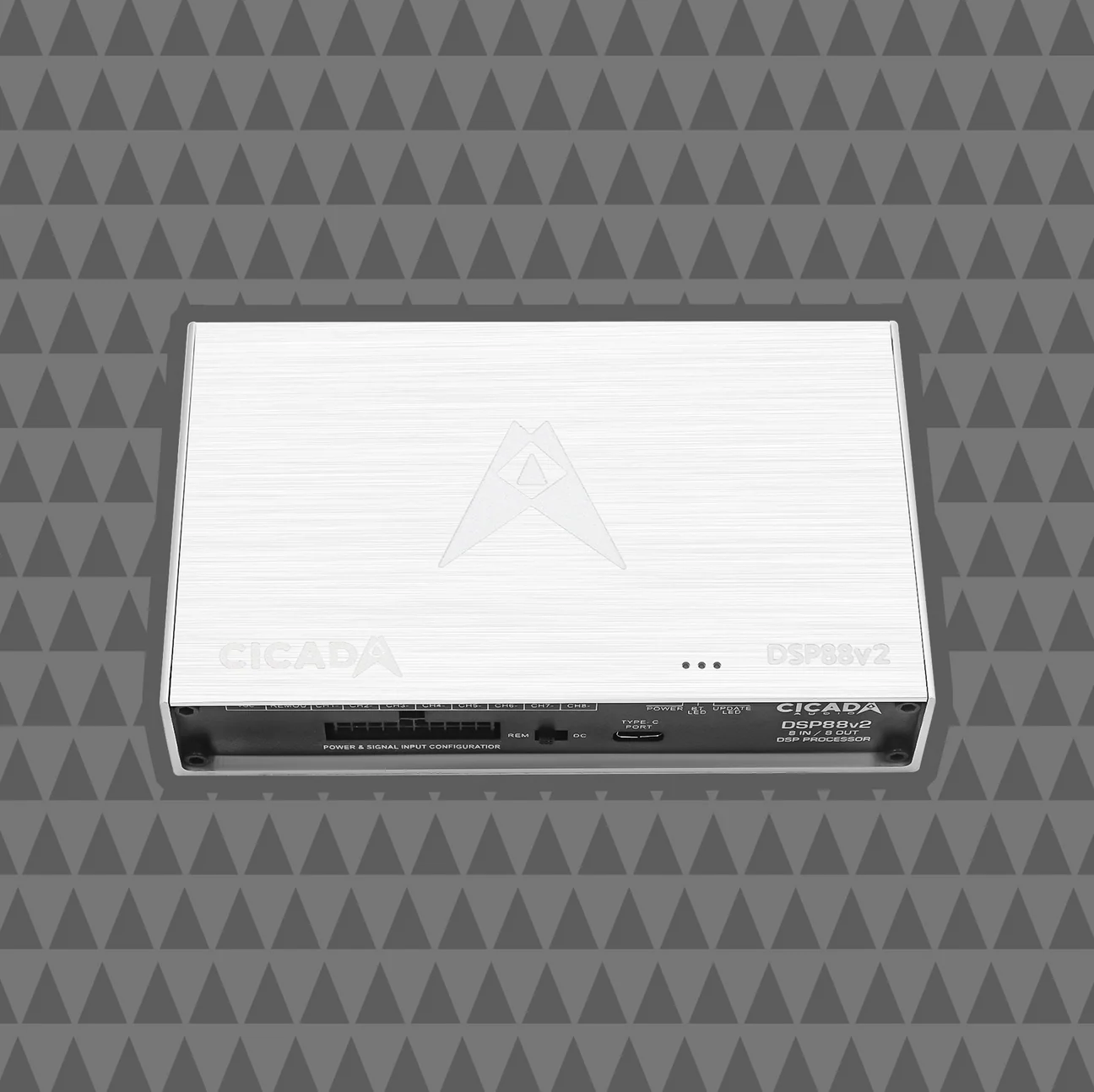

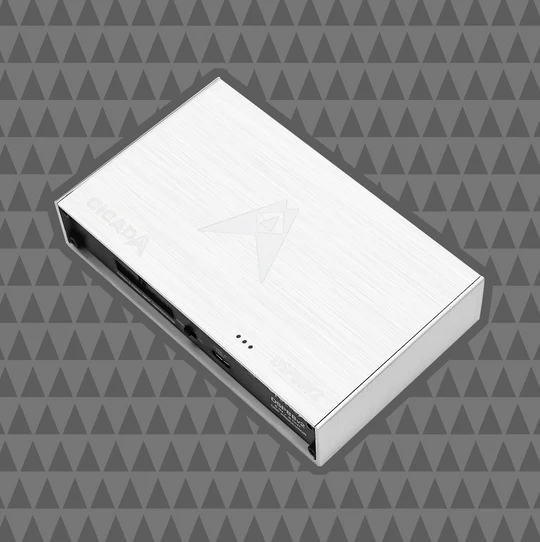

DSP88v2 – 8 CHANNEL DSP PROCESSOR – 8 IN/8 OUT

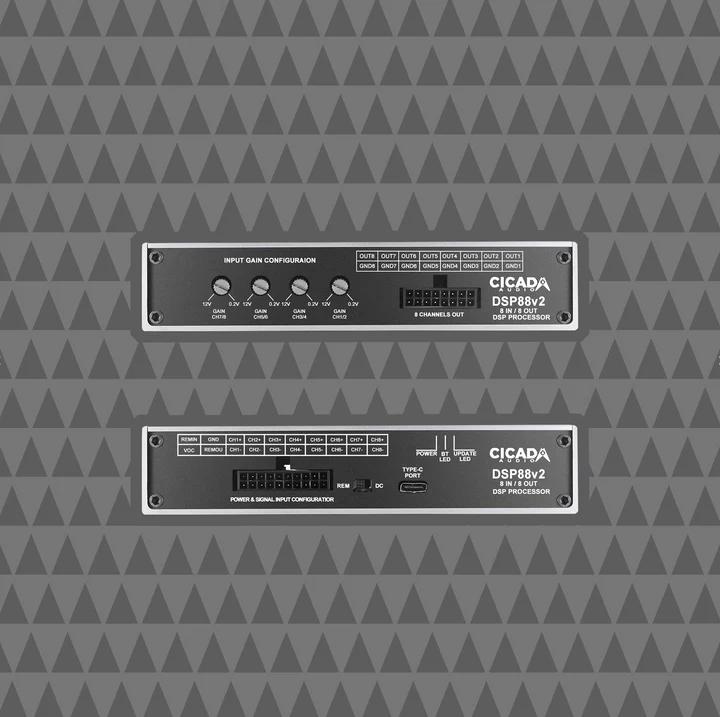

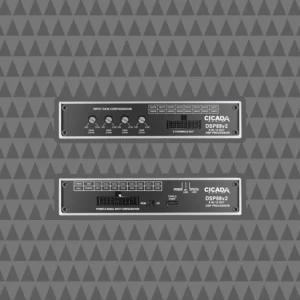

- Signal Input: 8 High-Low Level Inputs
- Signal Output: 8 RCA Outputs
- Output Impedance: 200 Ohms
- Frequency Response: 20Hz – 20kHz +/- 0.5Db
- Input Voltage: 0.02V – 12V
- Input Impedance: 20k Ohms
- Output Voltage: Up to 8V (Unity gain 4V gets UP to 4 V out, 2 V in gets UP to 2 V out, etc.)
- THD+N: <1.0%
- Signal-to-Noise: >100 dBA (A-weighted)
- Digital Signal Processing (DSP):
Speed: 147 MIPS Precision: 32-Bit Accumulators: 72-bit - Digital to Analog (DAC): Precision: 24-Bit
- Dynamic Range: 108 dB
- THD+N: -98 dB
- Analog to Digital (ADC): Precision: 24-Bit
- Dynamic Range: 105 dB
- THD+N: -98 dB
- Operating Voltage: 9 – 16 VDC
- Crossover Frequency: Variable: 20 Hz to 10 kHz
- Crossover Slope: Selectable Slope: 6/12/18/24/36/48 dB/Octave
- EQ Frequency Controls: Selectable Q: 0.05 to 20.0
- Dimensions (H x W x D): 1.26″ x 4.04″ x 5.12″ (32 mm x 102.5 mm x 130 mm)
Windows PC Software Available here
You can upload saved system settings from one DSP88v2 and load it into a different DSP88v2. (Think of the possibilities!)
