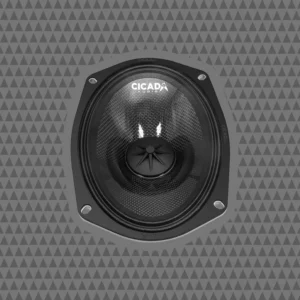

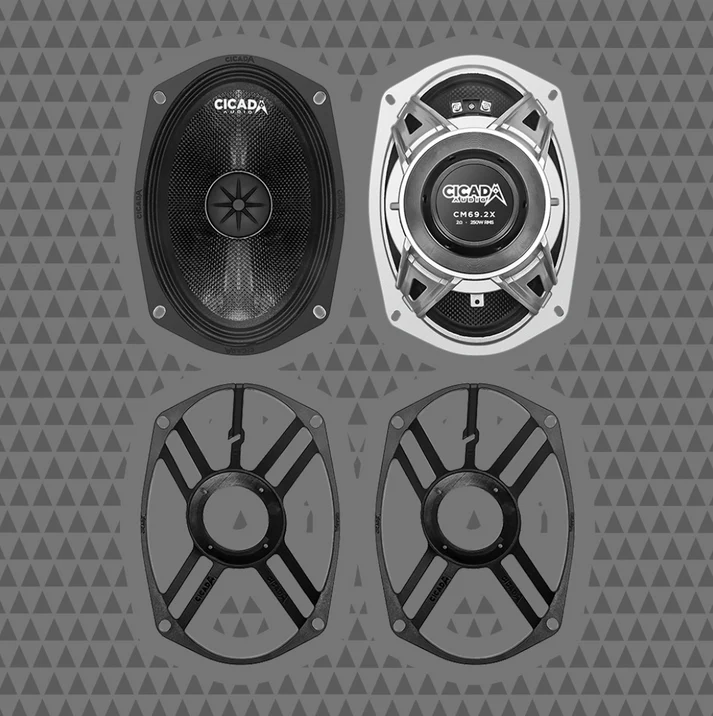

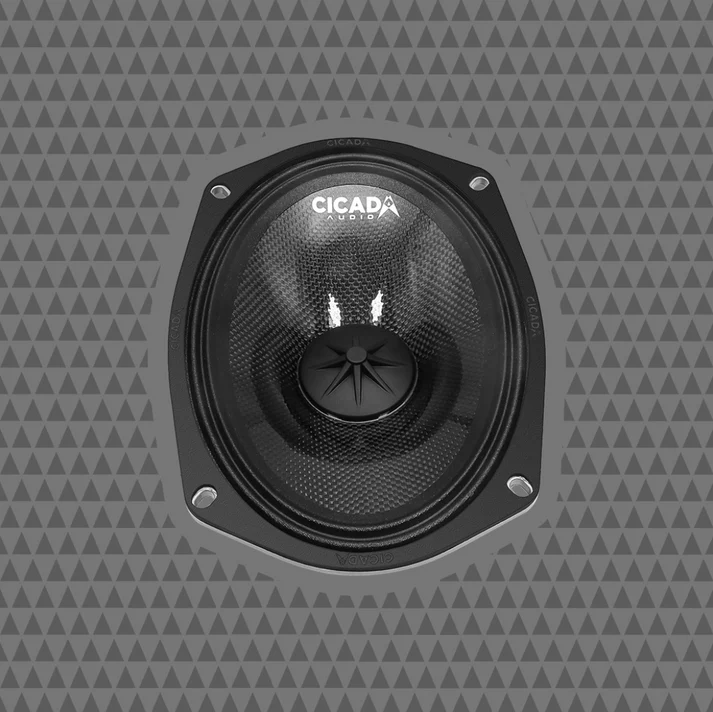

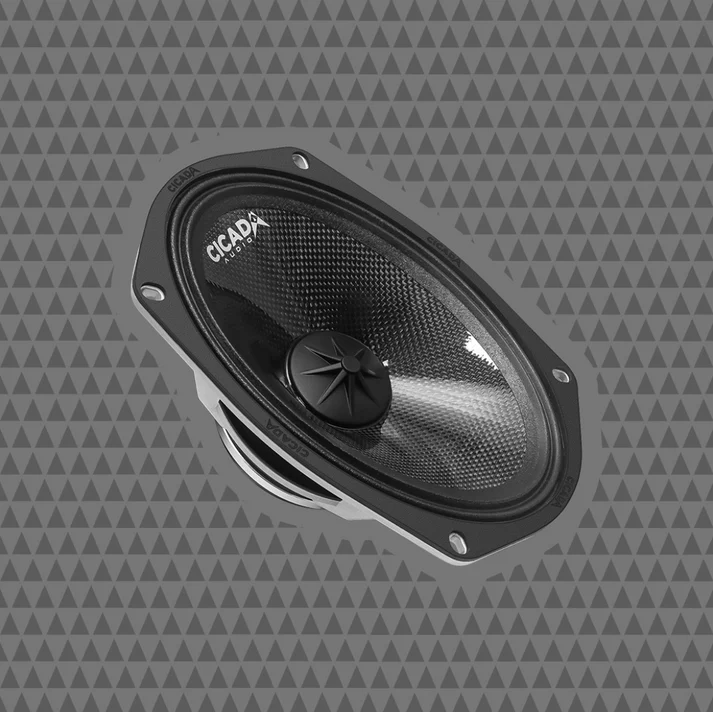

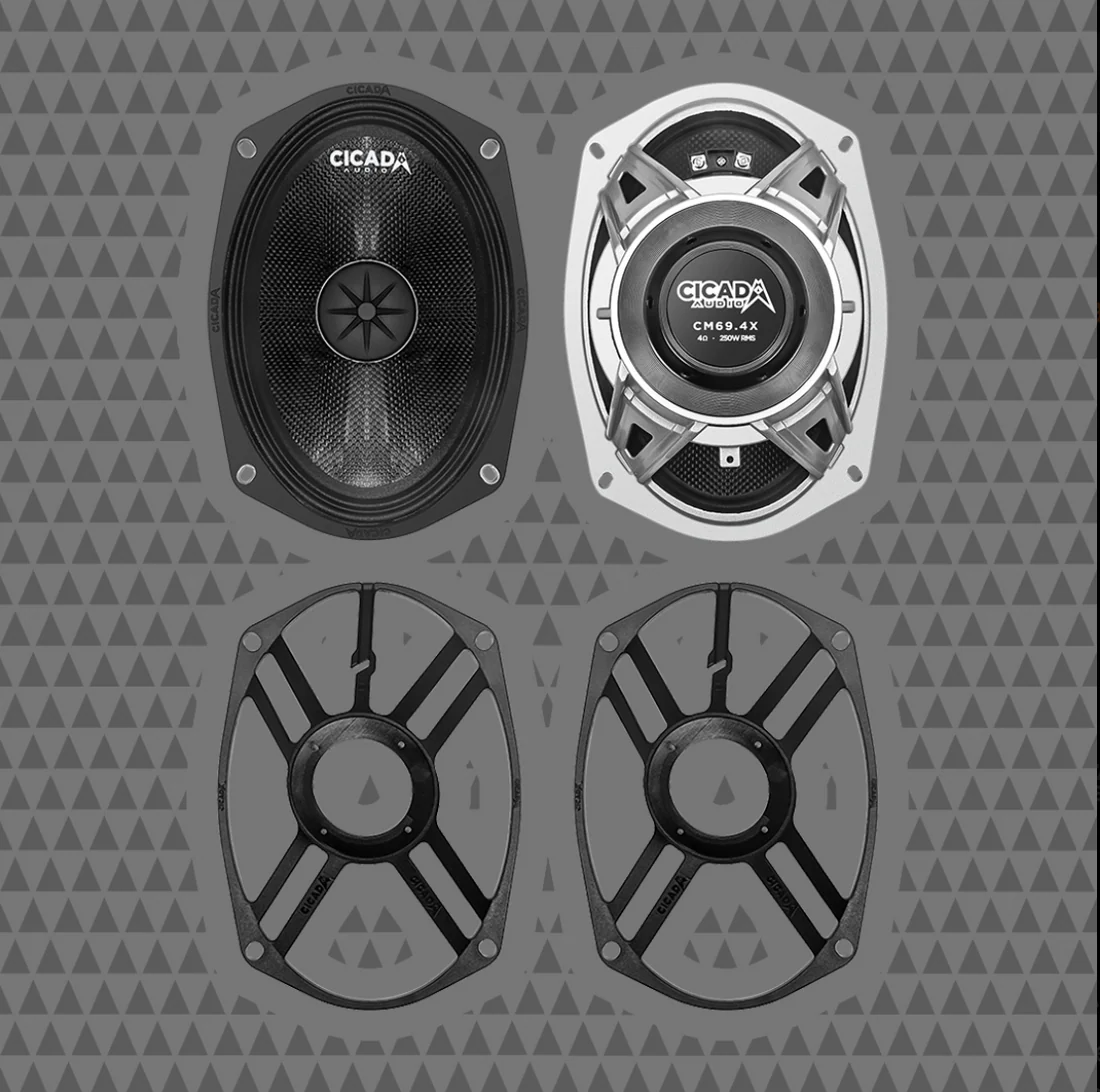

MID-BASS FEATURES
- Rain or Shine™ all weather performance design
- OFC Copper shorting ring for extended high frequency performance
- Carbon Matrix Composite™ (CMC™) cone is lightweight, strong, high temperature resistant, and exceptionally efficient
- OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
- N35SH Neodymium magnet motor
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Two (2) year warranty
MID-BASS SPECIFICATIONS
- 4Ω / 6X9-inch mid-bass driver
- Power Handling: 250W RMS / 500W MAX
- Voice Coil: 2-inch/51mm mid-bass
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 94 dB, 1W / 1M
- Frequency Response: 70 Hz – 10 kHz +/- 3 dB
- Mounting Depth: 3.26-inch/83mm
- Mounting Diameter: 5.7-inch/145mm X 8.5-inch/216mm

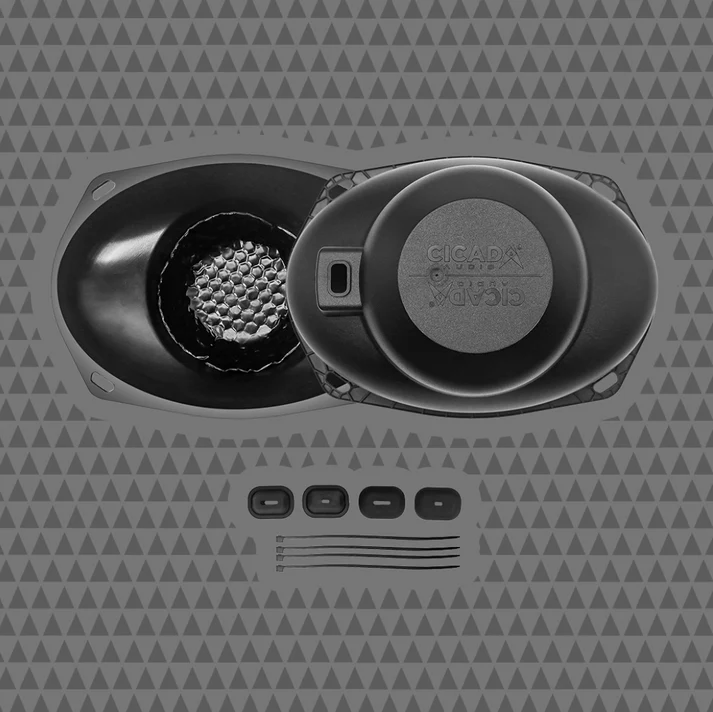

TWEETER FEATURES
- Rain or Shine™ all weather performance design
- Aluminum tweeter dome diaphragm delivers brighter sound and maximized efficiency
- OFC Copper wire voice coil offers great sound while generating less heat

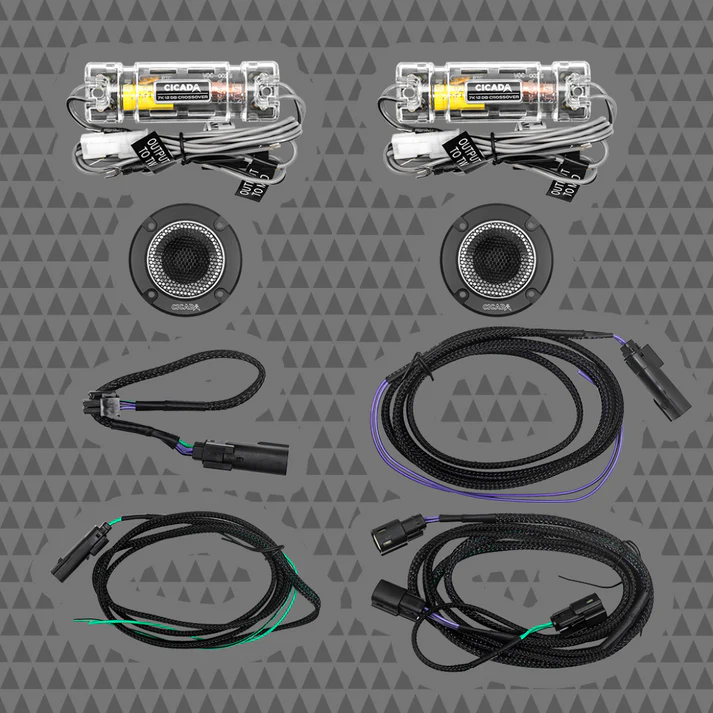

- Custom tooled, vented, encased external crossover
- Field replaceable diaphragm
- Aluminum die cast custom tooled backplate
- N35SH Neodymium magnet motor
- Two (2) year warranty
TWEETER SPECIFICATIONS
- 4Ω / 1-inch shallow ring radiator horn tweeter
- Power Handling: 50W RMS / 100W MAX
- Voice Coil: 1-inch/25mm tweeter
- Tweeter Dome: Aluminum
- Crossover: 12 dB @ 7 kHz
- Magnet: Neodymium
- Sensitivity: 101 dB, 1W / 1M
- Frequency Response: 2 kHz – 20 kHz +/- 3 dB
- Mounting Depth: 1.1-inch/28mm
- Mounting Diameter: 2-inch/50.8mm
