FEATURES:

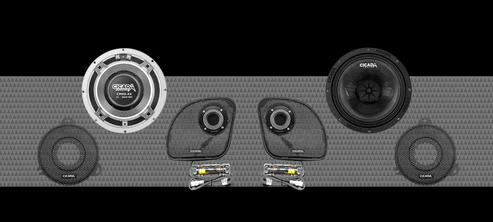

- Designed for 2014-2023 H-D® factory designed locations
- Rain or Shine™ all weather performance design
- OFC Copper shorting ring for extended high frequency performance
- Carbon Matrix Composite™ (CMC™) cone is lightweight, strong, high temperature resistant, and exceptionally efficient
- OFC Copper wire voice coil with Black Coat™ ensures high conductivity, low resistance, and extreme thermal performance
- N35SH Neodymium magnet motor
- Die cast Aluminum custom tooled basket with Vortex Flow Venting™
- Two (2) year warranty
SPECIFICATIONS:

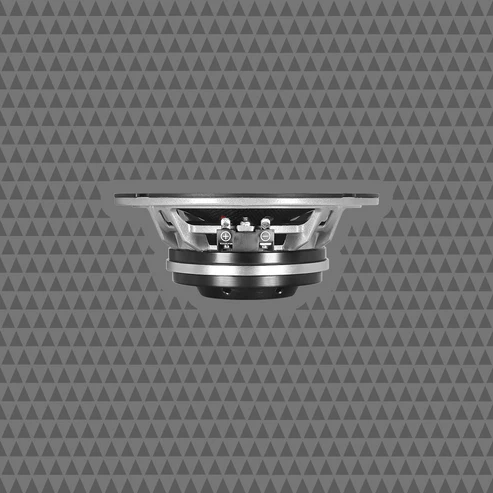

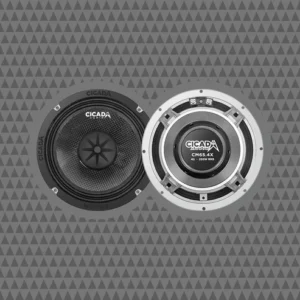

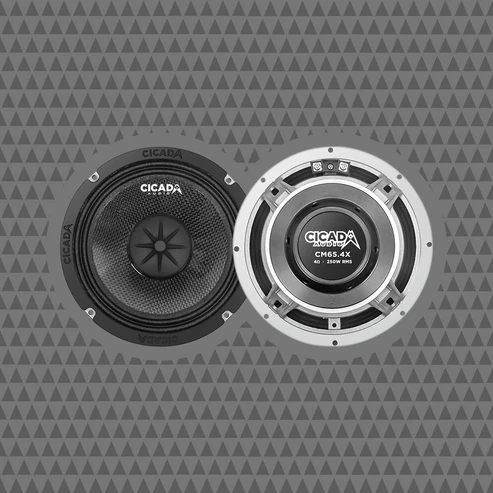

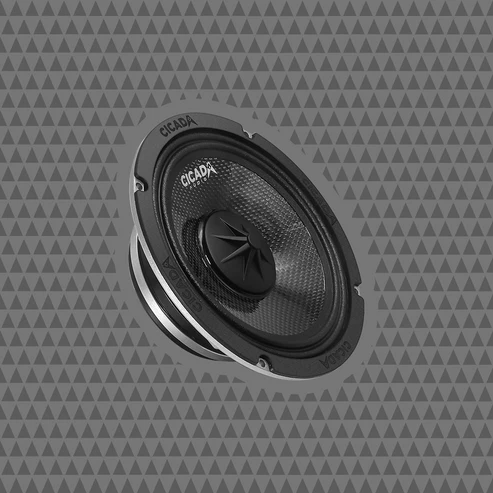

- 4Ω – 6.5-inch mid-bass driver
- Power handling: 250W RMS/500W MAX
- Voice Coils: 2.0-inch/51mm mid-bass
- Cone: Carbon Matrix Composite™
- Magnet: Neodymium
- Sensitivity: 94dB, 1W / 1M
- response 70Hz – 20kHz +/- 3dB
- Mounting Depth: 2.64-inch/67mm
- Mounting Diameter: 5.67-inch/144mm

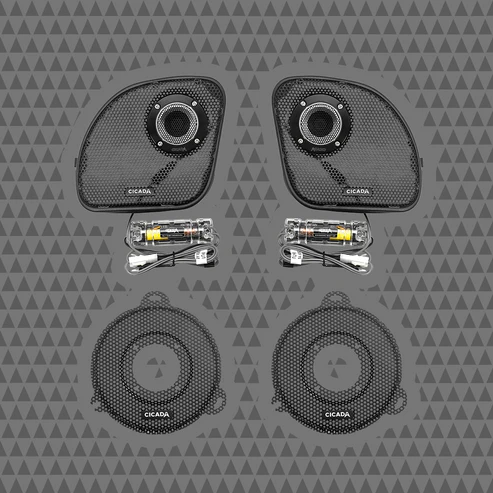

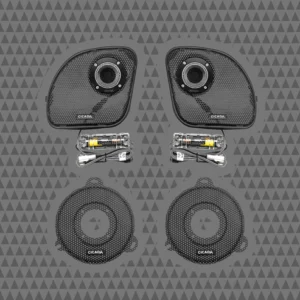

- 4Ω – 1.0-inch shallow ring radiator horn tweeter
- Power handling: 200W RMS/400W MAX
- Voice Coils: 1.0-inch/25mm tweeter
- Tweeter Dome: Aluminum
- Crossover: 12dB-7kHz external custom tooled, vented, encased crossover
- Tweeter Attenuation: -3/-6 dB heat sink encased resistor crossover
- Magnet: Neodymium
- Sensitivity: 107dB, 1W / 1M
- response 2kHz – 20kHz +/- 3dB
- Mounting Depth: 0.75-inch/18mm
- Mounting Diameter: 2.0-inch/50mm
